FRP Composite Fasteners

FRP (fiber-reinforced polymer) composite fasteners — also called fiberglass fasteners — use alkali-free glass fiber as reinforcement, impregnated with epoxy / vinyl-ester / polyester resin and pultruded into non-metallic fastening components, including the full set of FRP bolts, nuts, flat washers, threaded rods and studs.

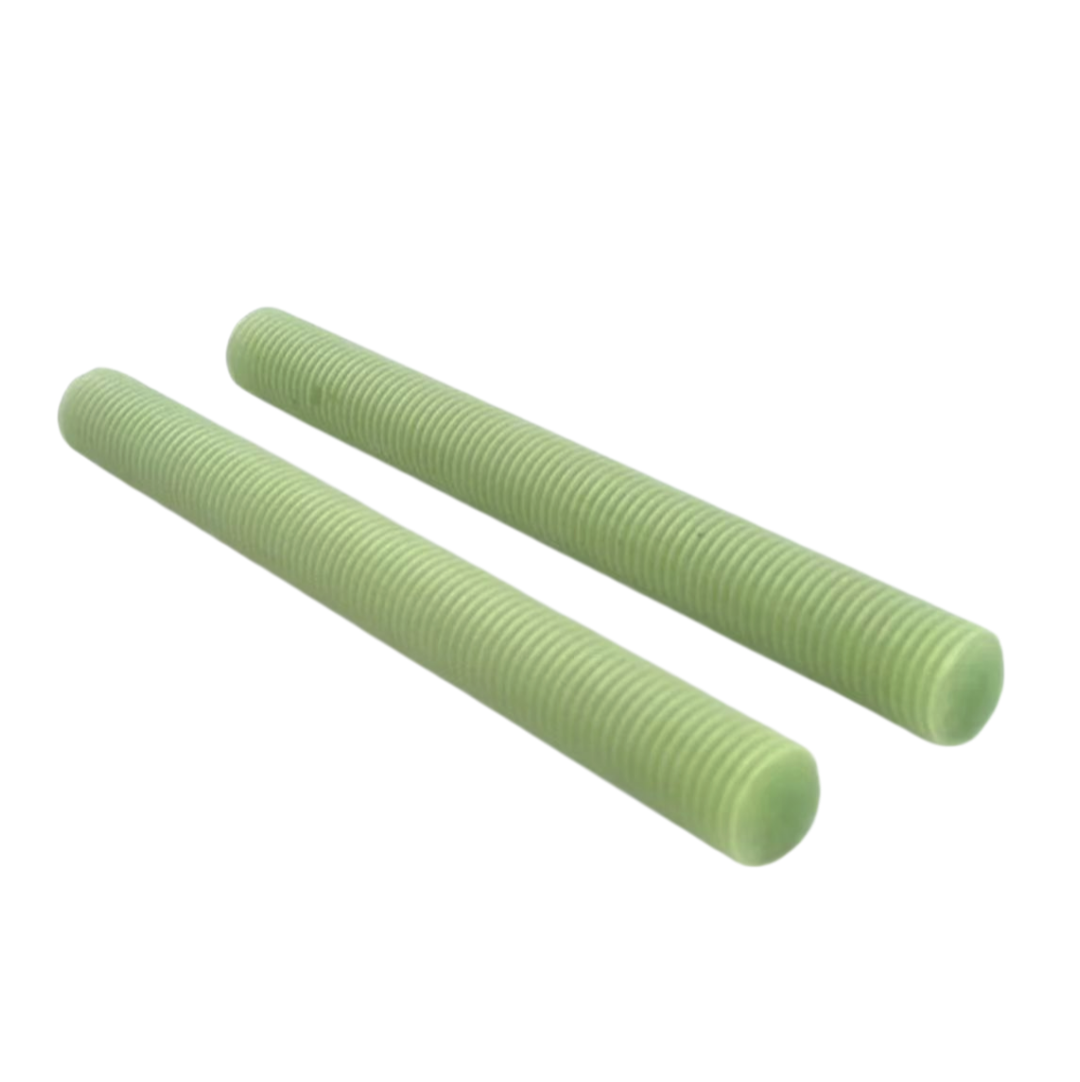

FRP Threaded Rod

• StructureThe entire rod is fully threaded with no bolt head, and can be cut to any length on demand.
• MaterialPultruded glass-fiber rod in epoxy / vinyl-ester, with continuous fibers throughout for high axial tensile strength.
• UsagePasses through clearance holes in two workpieces and is locked with a nut at each end; ideal for long-span connections, flange clamping, cabinet penetrations and rock-bolt support; length is not limited by standard bolt sizes and can be cut to order.
• FeaturesCan be joined and extended indefinitely; no head limitation; ideal for long-span insulated fastening; cannot be positioned by a single head like a bolt.
• ColorWater-green and beige; sizes M6–M30.

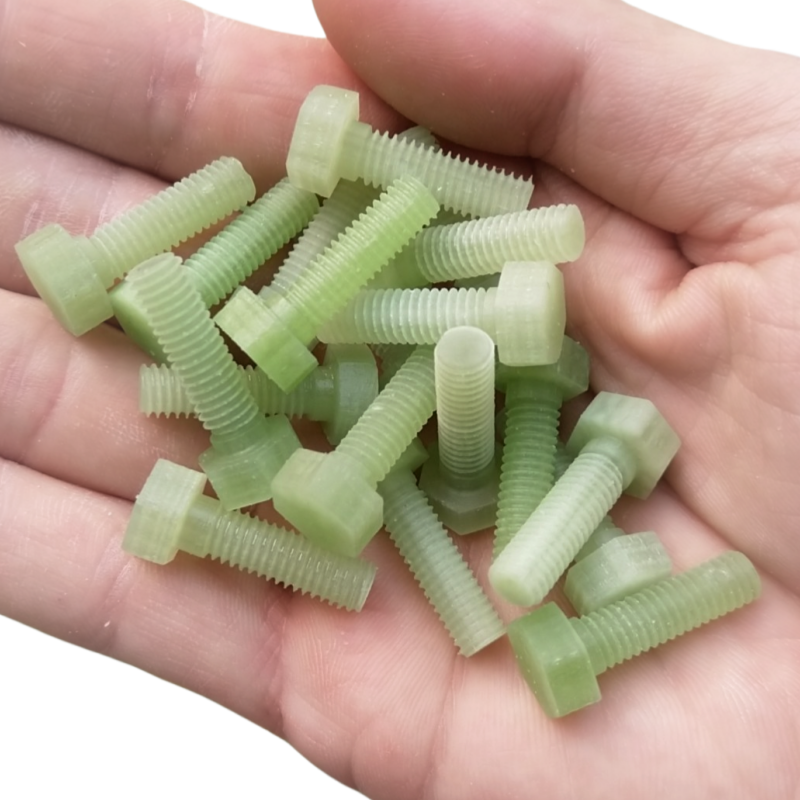

FRP Bolt

• StructureOne end has a molded hex head; the shank is partially externally threaded and the head is used for wrench-limited tightening — the threaded section is usually only part of the shank.
• MaterialThreads machined on pultruded FRP stock; epoxy G10 is most commonly used.
• UsageInsert through a hole in the workpiece; fit a nut + washer on the other side to lock; the head bears against the workpiece surface for positioning and easy assembly/disassembly.
• FeaturesFixed head for quick installation; supplied at fixed finished lengths and cannot be cut at will — cutting would damage the hex head.
• ApplicationsTransformers, rectifier equipment, anti-corrosion equipment, FRP platform fixing.

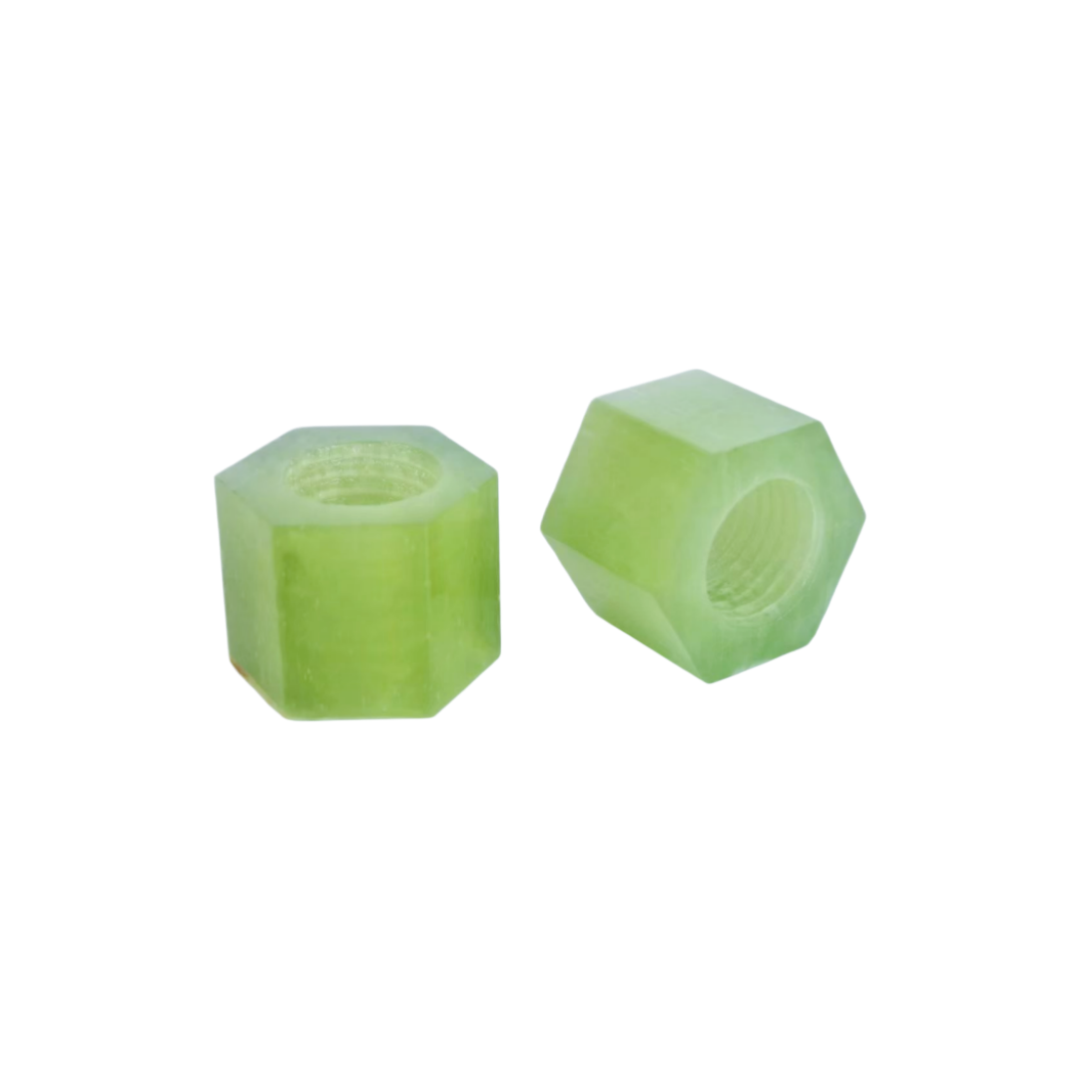

FRP Nut

• StructureHex-shaped with precision-machined internal threads matching FRP bolts / threaded rods.
• MaterialInternal threads tapped from FRP plate or stock; epoxy G10 gives the best strength, while polyester is lower cost.
• UsageScrewed onto the external threads of a threaded rod or bolt to apply clamping force; must always be used together with an FRP washer to avoid crushing composite workpieces.
• NoteFRP is more brittle than metal — never force with excessive torque; over-tightening easily causes thread stripping or cracking.
• TypeMainly standard hex nuts; square nuts can also be made.

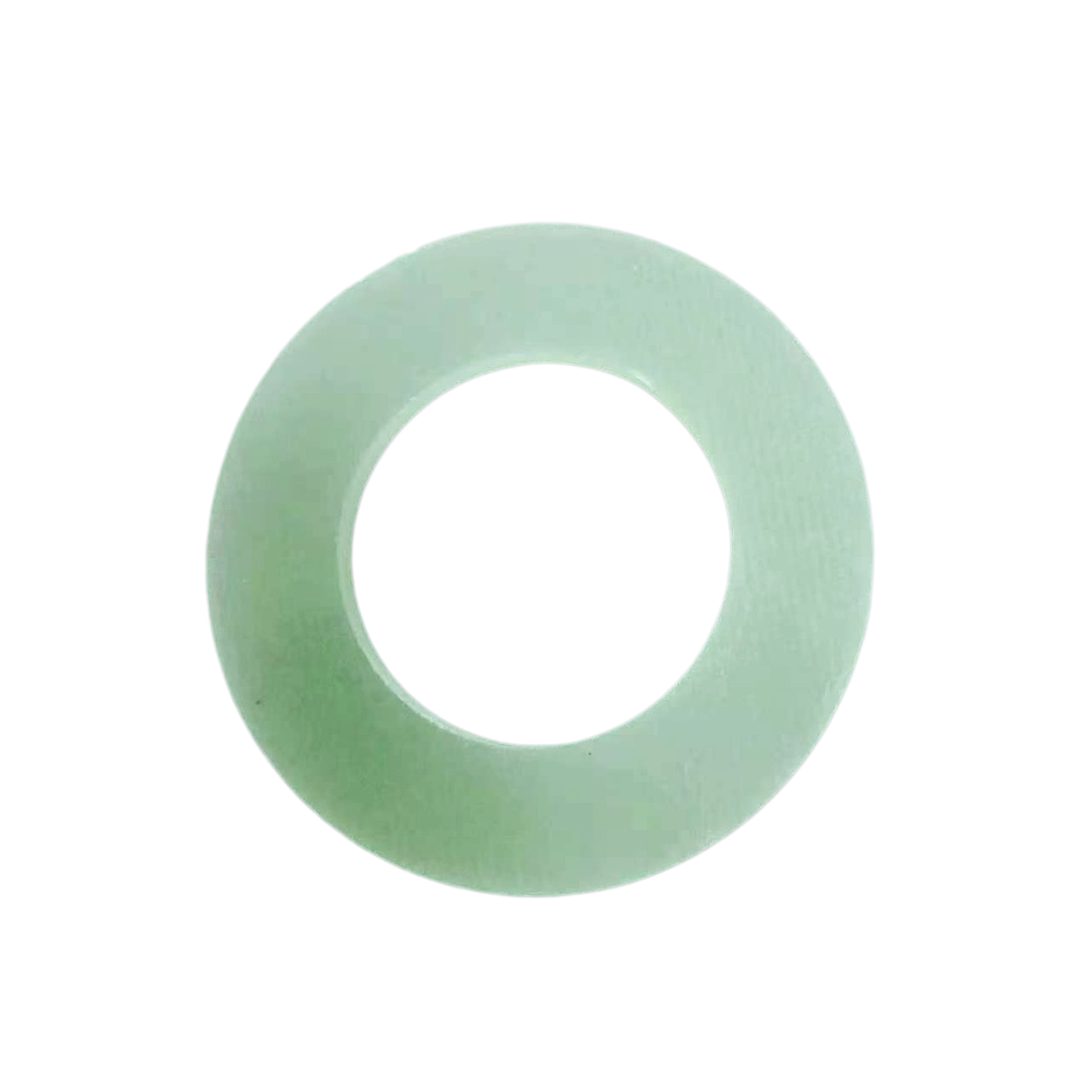

FRP Washer

• StructureAnnular flat washer with a central hole; inner and outer diameters match the bolt size.
• MaterialG10 / FR4 epoxy glass-fiber board.
• Core Function1) Increases the bearing contact area and distributes tightening pressure to prevent FRP nuts from crushing the workpiece; 2) Electrically isolates and maintains insulation integrity; 3) Compensates for assembly clearance.
• Usage RuleWhen assembling bolts / threaded rods, washers are recommended on both sides of the workpiece; metal washers should not be mixed with FRP fasteners.

Key Advantages

• Electrically insulating, non-magnetic, dielectric strength ≥ 15 kV/mm
• Resists acid, alkali, seawater and flue-gas corrosion — never rusts
• Lightweight — about 1/4 the weight of steel
• Resin options: epoxy (high-strength insulation), vinyl-ester (strong anti-corrosion), polyester (economical)
• Applications: power transformers, chemical desulfurization, marine equipment, FRP platforms, mine support

Product Types (by Matrix Resin)

Standard sizes: metric M6–M30; hexagonal bolts, fully-threaded rods, double-end studs and matching nuts/washers can be machined, with non-standard custom sizes supported.
