Magnesium Alloy Sacrificial Anode

Bare Magnesium Anode
Bare Magnesium Anode

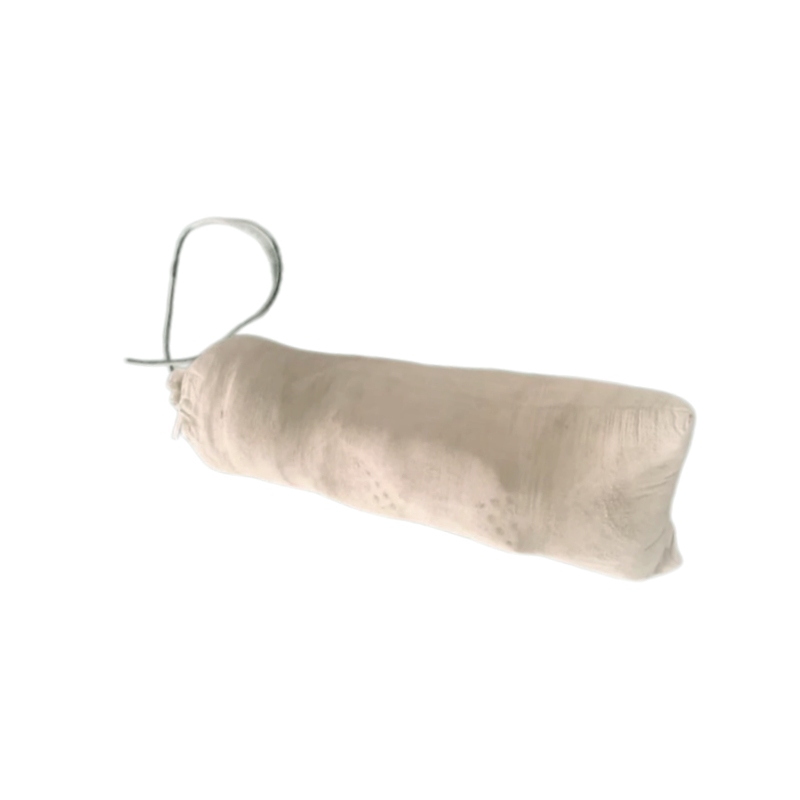

Pre-packaged Mg Anode
Pre-packaged Mg Anode

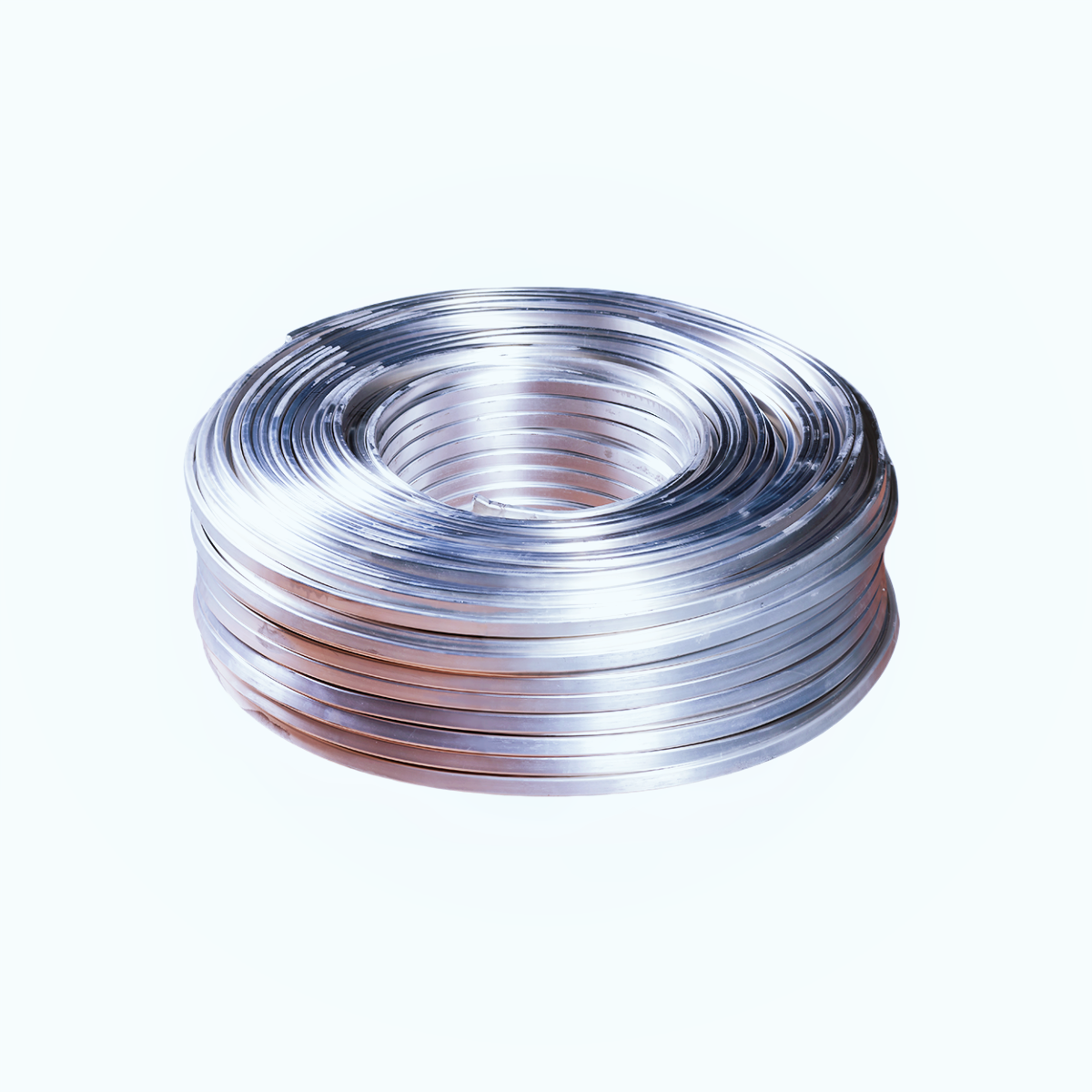

Magnesium Ribbon
Magnesium Ribbon Anode

Magnesium sacrificial anode is the core anti-corrosion material for cathodic protection. It provides long-lasting and reliable corrosion protection for buried and submerged metal structures through preferential electrochemical corrosion. Featuring negative potential, high driving voltage and stable current output, it is widely used in high-resistivity soil, fresh water, storage tanks, pipelines, ships and steel structures. We supply cast anodes (ingot type, D type, bracelet type) and pre-packaged anodes with cotton bag and backfill.

  • No external power required
  • Easy installation, maintenance-free
  • Long service life (10–20 years typical)
  • Stable current output in high-resistivity soil
  • ASTM B843 / GB/T 17731 certified
Underground oil & gas pipelinesStorage tank bottomsBuried cables & pilingsShip hulls & ballast tanksPort & offshore structuresWater heaters & condensers

Technical Specifications

Chemical Composition

Grade AlZnMnFeCuNiMg
AZ63B5.3–6.72.5–3.50.15–0.7≤0.005≤0.005≤0.001Bal.
M1C0.5–1.3≤0.01≤0.01≤0.001Bal.

Electrochemical Performance

Item High Potential M1C Standard Potential AZ63B
Open Circuit Potential (V, Cu/CuSO4)≤ −1.75≤ −1.55
Practical Current Capacity (Ah/kg)≥1230≥1100
Current Efficiency (%)≥55≥50
ApplicationHigh-resistivity soil / Fresh waterSoil / Fresh water / Tanks

Product Structure & Accessories (Optional)

  • Core material: Q235 galvanized / stainless steel
  • Packaging: bare anode / pre-packaged backfill anode (backfill + cotton bag)
  • Cable: copper cable, customizable length
  • Shape: trapezoid, D-type, round bar, ribbon, custom shapes
